MVII GPX in BA123


 Posted by at 18:47

Since a long time I would like to have a BA123 Case as the space in a BA23 is limited and it’s each time a bit tricky to thread in/out the cards and cables.

In my last Haul I have got these nice equipped MicroVAXII in BA123.

Unfortunately the system was damaged by water, ontop to the usual NiCd damage, which has done great work.

I have spend many hours to clean the system, to repair the fans, and to neutralize the acid.



System says hello and lives again. It’s not a beauty as the damage was too much, but it’s running and passing the MDM diagnostics.



 MAIN  MENU                                        Release 137   Version V4.8
 SYSTEM CONFIGURATION AND DEVICES

     CPUA ... MicroVAX CPU
         KA630-A 1MB, FPU  FW=01 HW=00
     MEMA ... MicroVAX II Memory System
         16 megabytes. 32768 Pages.
               KA630 ... M7606-AA/EA CPU module with disabled on-board memory
               MS630-CA ... M7609-AA (MS630-CA) Memory module, quad height 8MB
               MS630-CA ... M7609-AA (MS630-CA) Memory module, quad height 8MB
     No Dg ZZZ ... Diagnostic not loaded.
     UNKNOWN ... Diagnostic not loaded.
     UNKNOWN ... Diagnostic not loaded.
     No Dg ZZT ... Diagnostic not loaded.

 Press the RETURN key to return to the previous menu. >

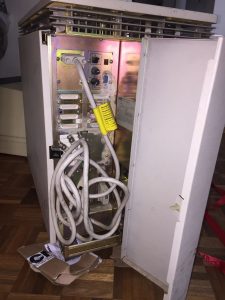

On the first picture you can see the watermark. 🙁
